PROTECTION FRAME
Ref: A352
-
PROTECTION FRAME
Ref: A352 -
SHORT MOUNTING U-BRACKETS (x2)
Ref: A315 -
LONG MOUNTING U-BRACKETS (x2)
Ref: A316
T-fitting.

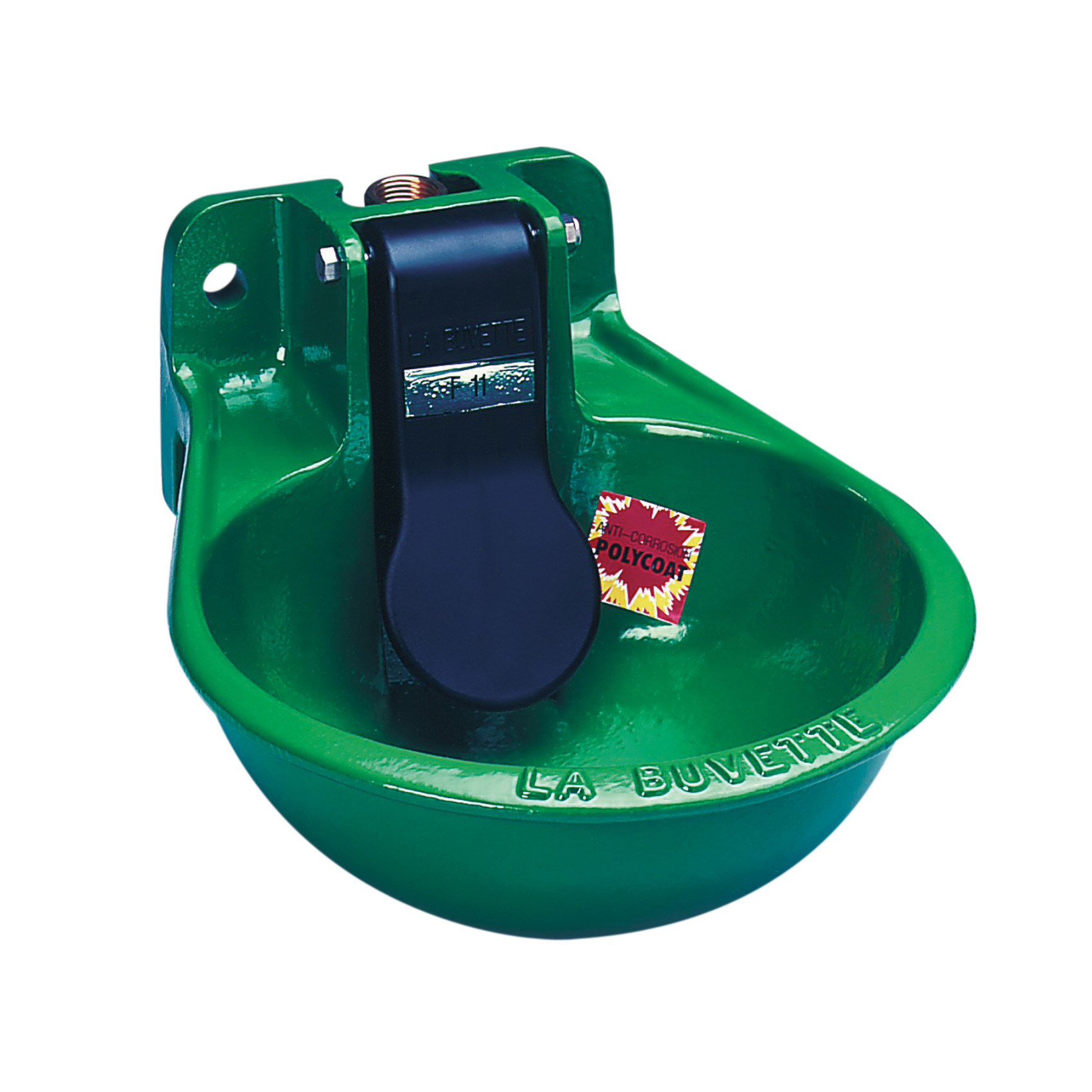

Vertical short paddle for an easier cleaning.
Vertical short paddle for an easier cleaning.
The brass valve of the F11 can easily be removed from the front.
It is equipped with a red jet for pressures up to 4 bars (13 l/min).
For pressures between 0,5 and 2 bars, order the spare part with ref. 1090714.
For supply by gravity, choose the spare part with ref. 1090715.
It is equipped with a red jet for pressures up to 4 bars (13 l/min).
For pressures between 0,5 and 2 bars, order the spare part with ref. 1090714.
For supply by gravity, choose the spare part with ref. 1090715.
| Débit l./Min | 12 |
|---|---|
| Longueur (mm) | 240 |
| Largeur (mm) | 321 |
| Hauteur (mm) | 160 |
| Code barre | 3599150040846 |
| Mode d'approvisionnement en eau | Water network |
| Robinetterie | Paddle |
| Matière | Cast iron, Brass |
- Vue éclatée des pièces 0200-F11-FORSTAL-PALETTE.pdf (Size: 1.2 Mb)
- Notice de montage Montage_F11_FORSTAL.pdf (Size: 2.6 Mb)
