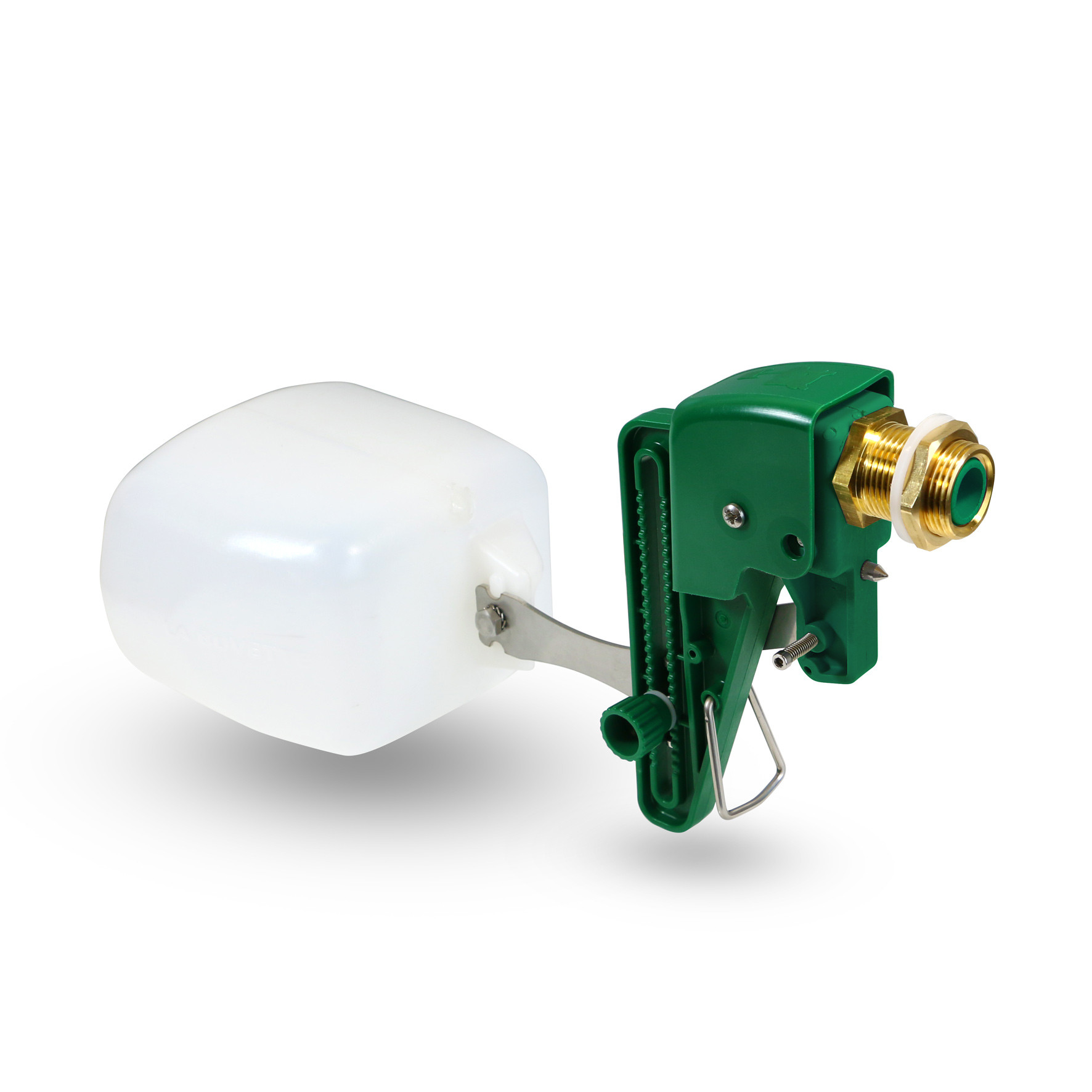

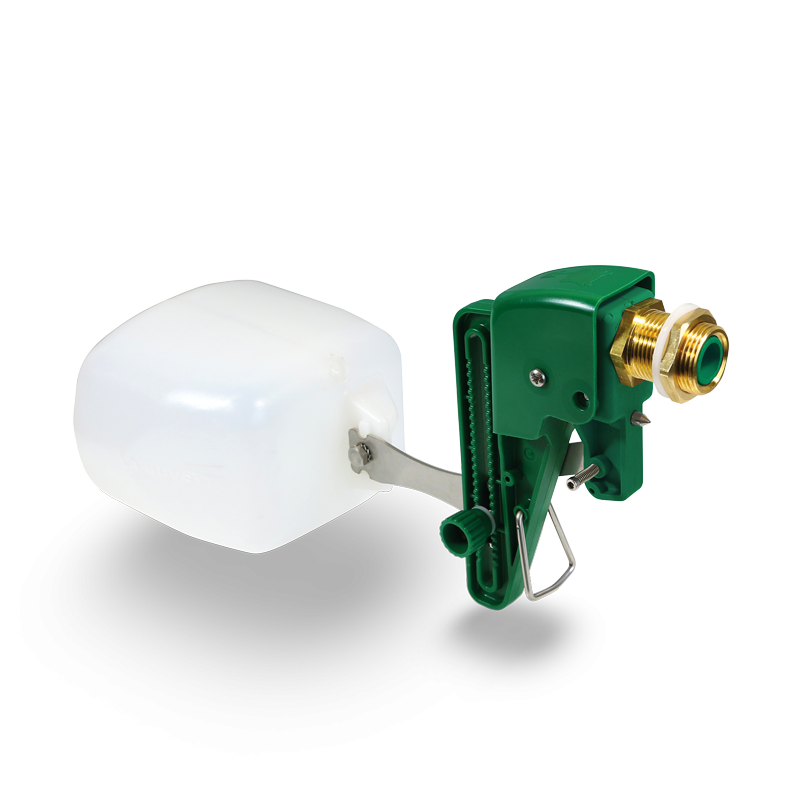

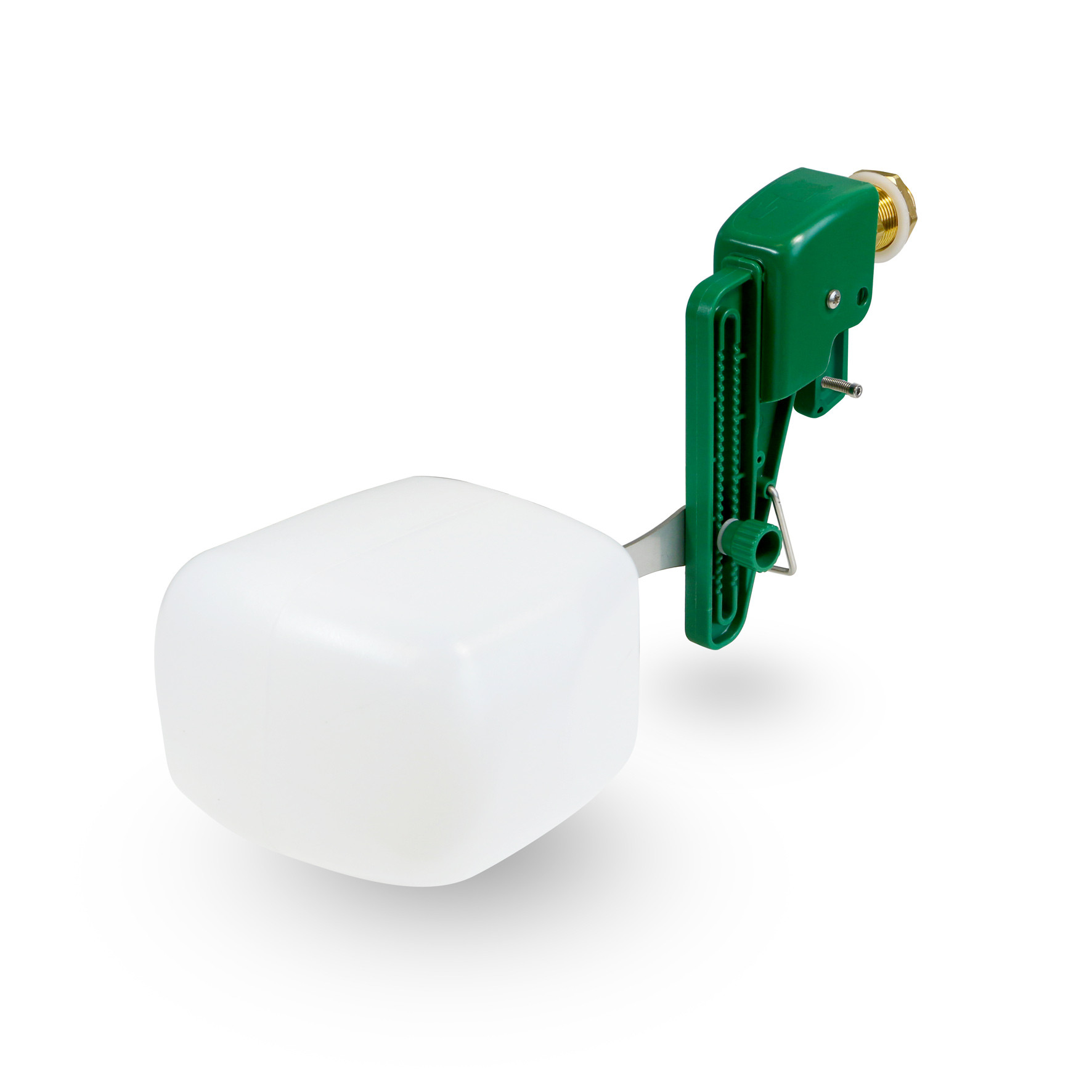

103 L/MN. FLOAT-VALVE JUMBO+

High flow rate float valve for trough and tank 103 l./mn

SKU REF : A635

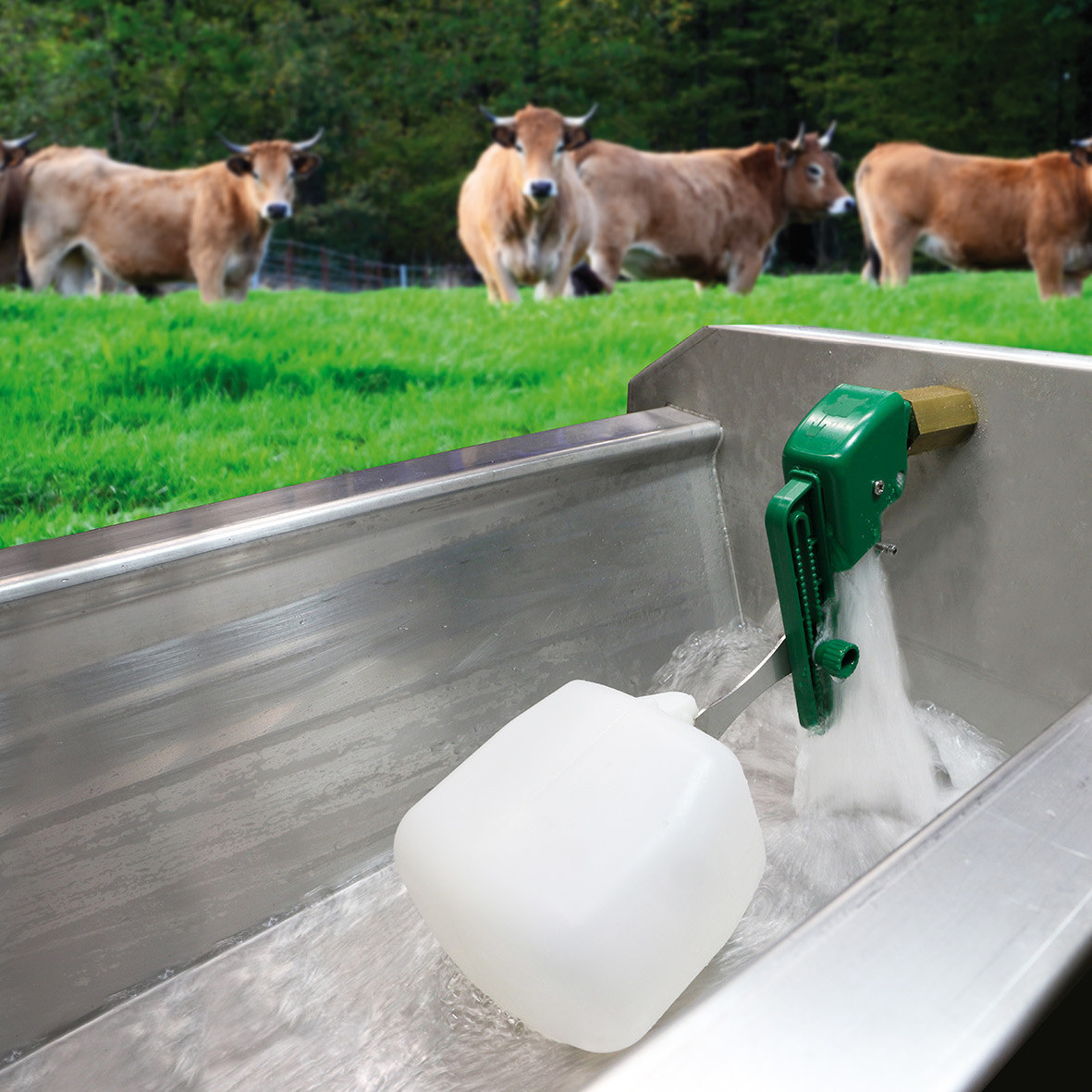

Synthetic and stainless steel valve, rustproof, designed to fill drinking troughs or tanks in record time.
An innovativ patented system avoid oscillations created by float bouncing. It protects the pipes from the resonance phenomenon damages;
Model: 103 l./mn at 3 bars (Established performance) (19 USG/mn from 43.5 psi).
Adjustable water level. The height of the floats can be adjusted without tools.

¾” (20x27 mm) male brass fitting.
½”(15x21) male connection is still possible by screwing off the brass fitting.
Water shut off pin.

Maximum pressure: 6 bars (87 psi).

Comes in blister pack.
Also available: 79 l./mn (A634).

Shipping delay: J+10

de détails

Add to Compare

Get more info

Advantage
Technical information
Documentation

Measured flow: 72 l./mn from 3 bars
Reliable, long service life.
Stainless steel + synthetic = rustproof.
Double float valve for gentle closing.
Water shut off pin.

Flow rate l/mn	103
Length (mm)	317
Width (mm)	145
Heigth (mm)	148 > 168
Bar code	3599150051606
Water supply	Water network
Fitting	3/4”
Valve	Constant Level
Matter	Synthetic, Stainless steel

Découvrez nos nouvelles robinetteries anti-oscillation Jumbo et Jumbo + ! JUMBO et JUMBO+
