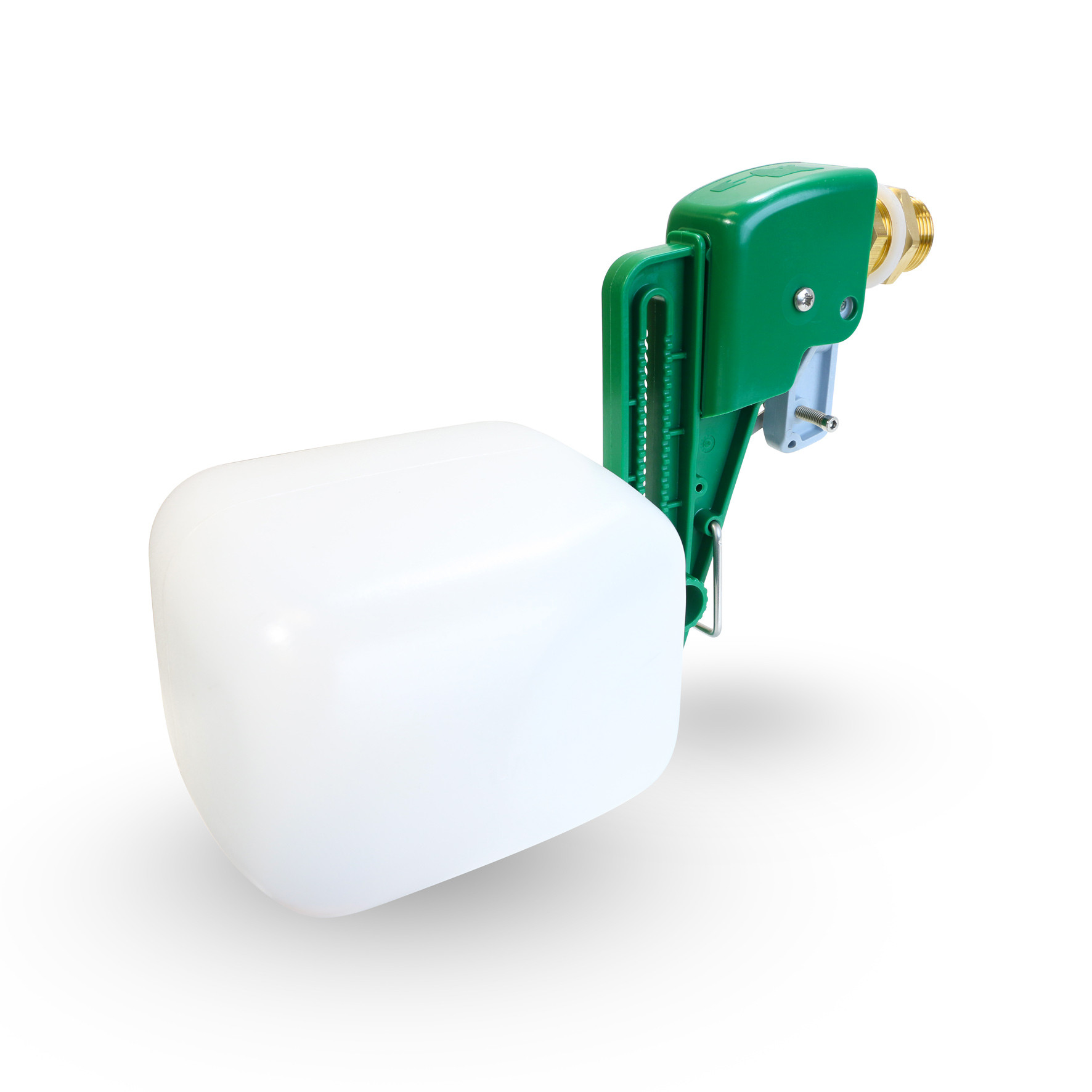

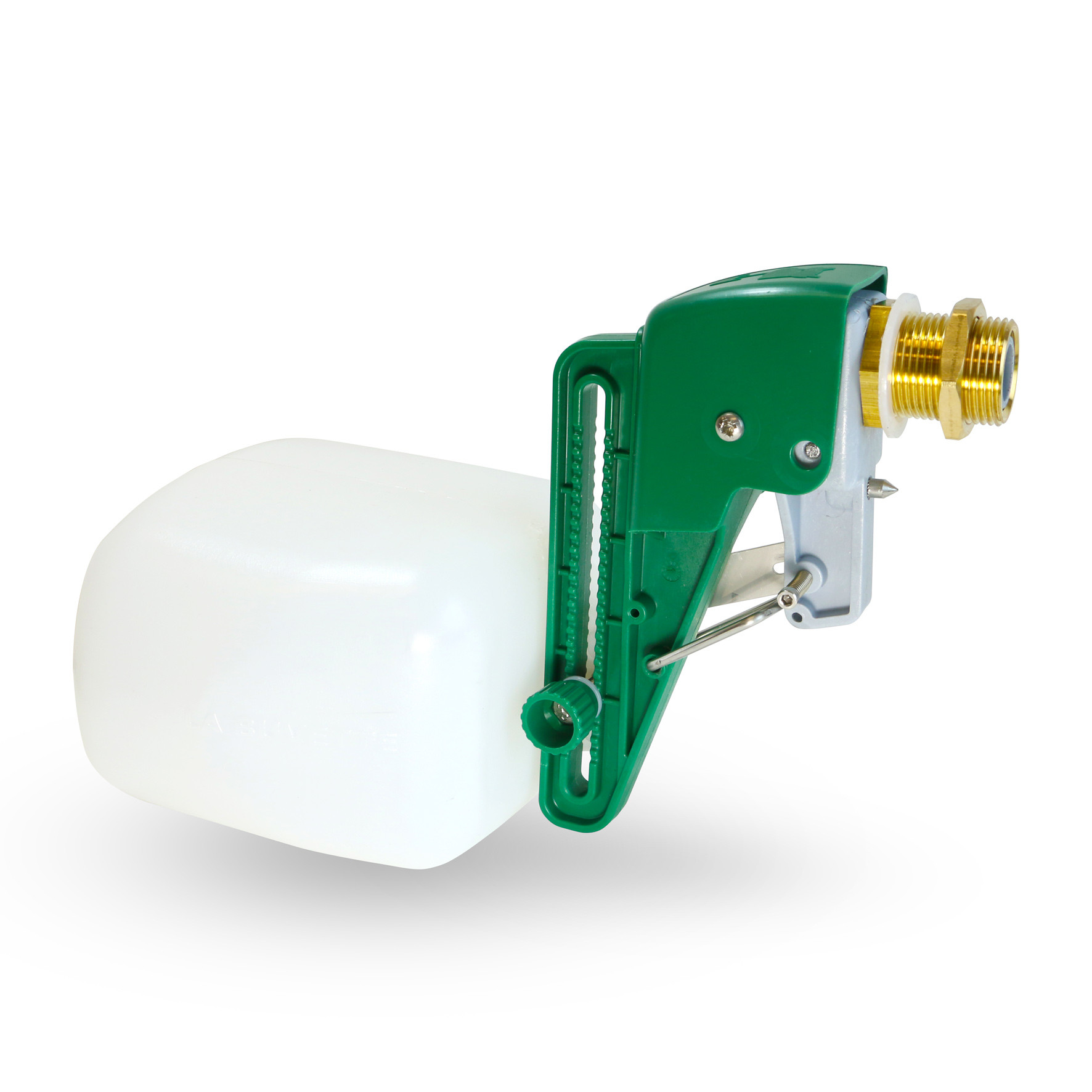

80 L/MN. JUMBO FLOAT-VALVE

High flow rate float valve for trough and tank 80 l./mn

SKU REF : A634

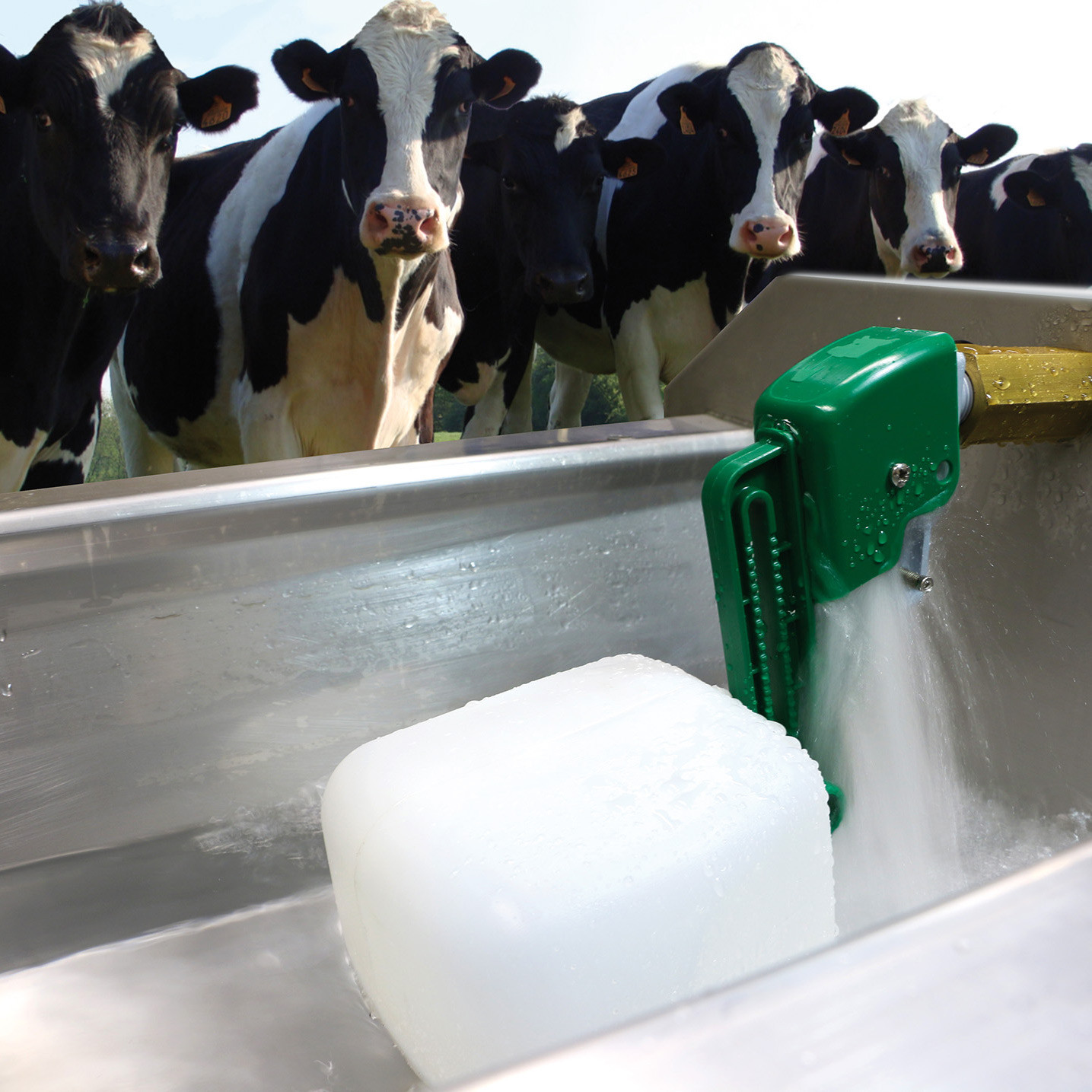

Synthetic and stainless steel valve, rustproof, designed to fill drinking troughs or tanks in record time.
An innovativ patented system avoid oscillations created by float bouncing. It protects the pipes from the resonance phenomenon damages
Model: 80 l./mn at 3 bars (Established performance) (19 USG/mn from 43.5 psi).
Adjustable water level. The height of the floats can be adjusted without tools.

¾” (20x27 mm) male brass fitting.
½”(15x21) male connection is still possible by screwing off the brass fitting.
Water shut off pin.

Maximum pressure: 6 bars (87 psi).

Comes in blister pack.
Also available: 103 l./mn (A635).

Shipping delay: J+5

de détails

Add to Compare

Get more info

+ Produit
Technical information
Documentation

Measured flow: 80 l./mn from 3 bars
Reliable, long service life.
Stainless steel + synthetic = rustproof.
Double float valve for gentle closing.
Water shut off pin.

Débit l./Min	80
Longueur (mm)	227
Largeur (mm)	145
Hauteur (mm)	148 > 168
Code barre	3599150051590
Mode d'approvisionnement en eau	Water network
Raccordement en eau	3/4”
Robinetterie	Constant Level
Matière	Synthetic

Vue éclatée Pièces de rechange 0305-JUMBO-JUMBO-PLUS.pdf (Size: 472.4 Kb)
Découvrez nos nouvelles robinetteries anti-oscillation Jumbo et Jumbo + ! JUMBO et JUMBO+
