GV230 Stainless Steel Rapid-Drain Trough for Dairy Cows

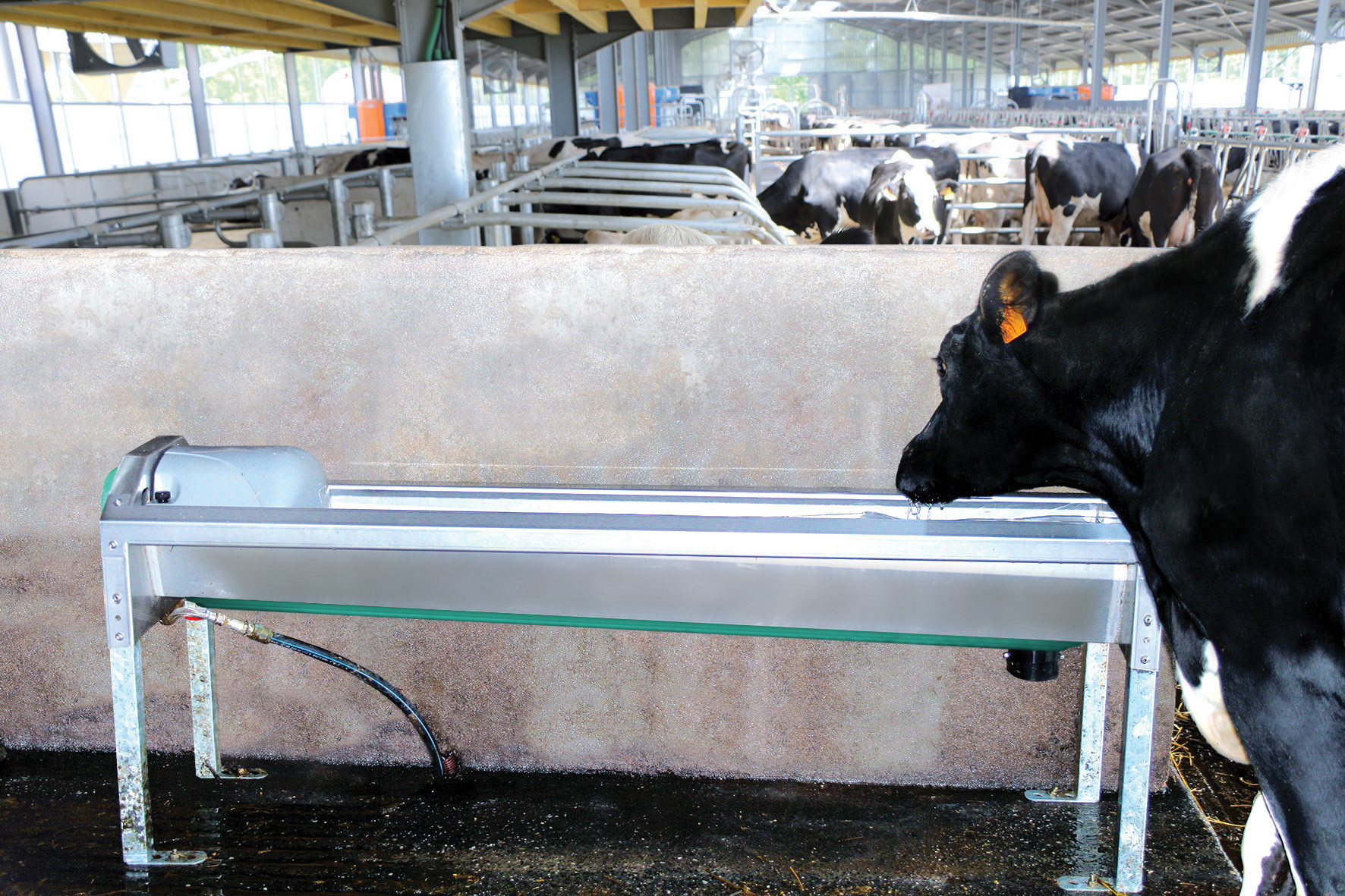

Stainless steel trough with large draining for up to 4 cows at the same time.

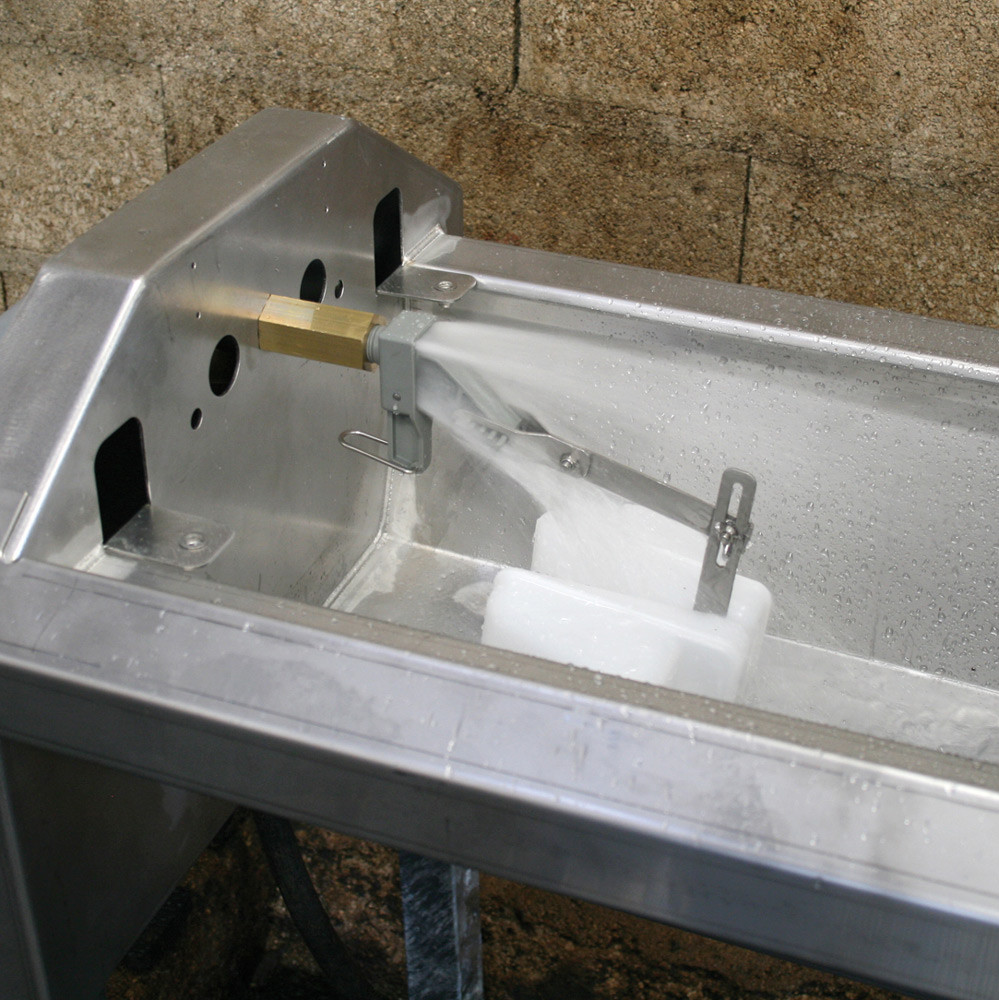

72 l./mn. valve (measured flow rate at 3 bars) with water shut off pin.
¾” swivel fitting with 2 entries: can be connected to a PROFLOW II or SPEED-FLOW circulation pump without extra accessories.
Stainless steel trough of 112 litres linking sturdiness and food safety. With slanted bottom for easier cleaning and specially folded non-spill edge to minimize water loss and avoid splashing.
The valve is protected against the animals by an insulating double-walled HD-Polyethylen cover also serving as a first protection from frost.
A second HDPE side plate avoids all contact between the animals and the water supply. Its insulating capacity protecting it from frost.

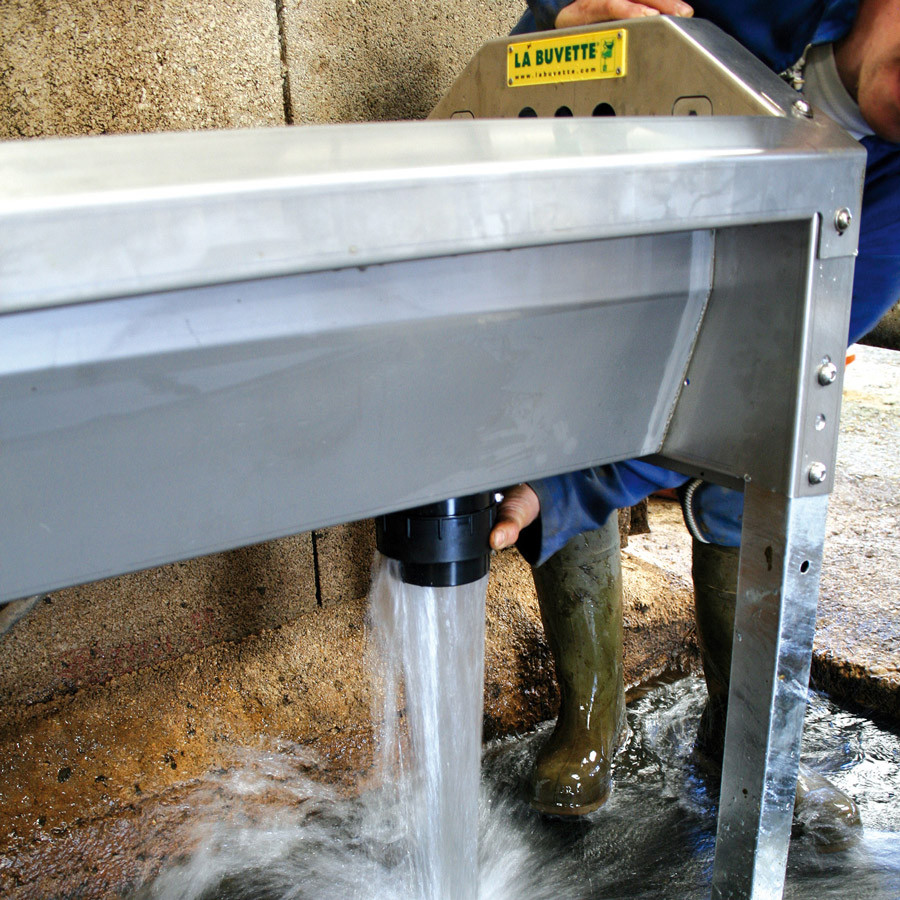

"Dry hands" draining system with plug Ø 100 mm:
accessible from below without having to put your hands in the trough and equipped with a simple opening/closing system that can be locked without the use of tools. The rubber plug is not affected by frost.

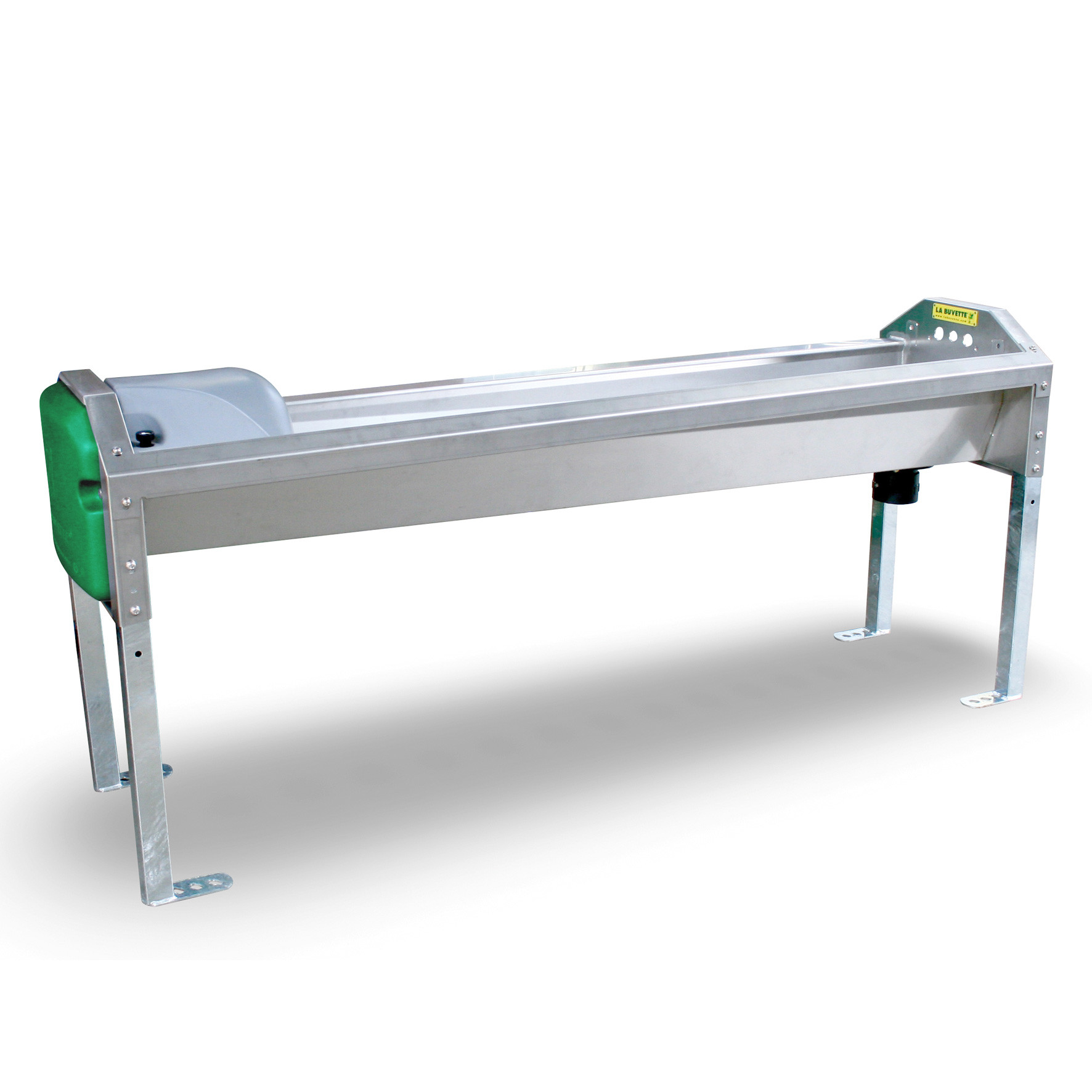

For wall mounting, but can be installed on floor with feet (ref D201, to order separately).
Several frost protection sets are available.
