Connection set with S.S. loop MULTI-TWIN
Ref: A383THIRD VALVE for MULTI-TWIN
Ref: A384
-
Connection set with S.S. loop MULTI-TWIN
Ref: A383 -
THIRD VALVE for MULTI-TWIN
Ref: A384

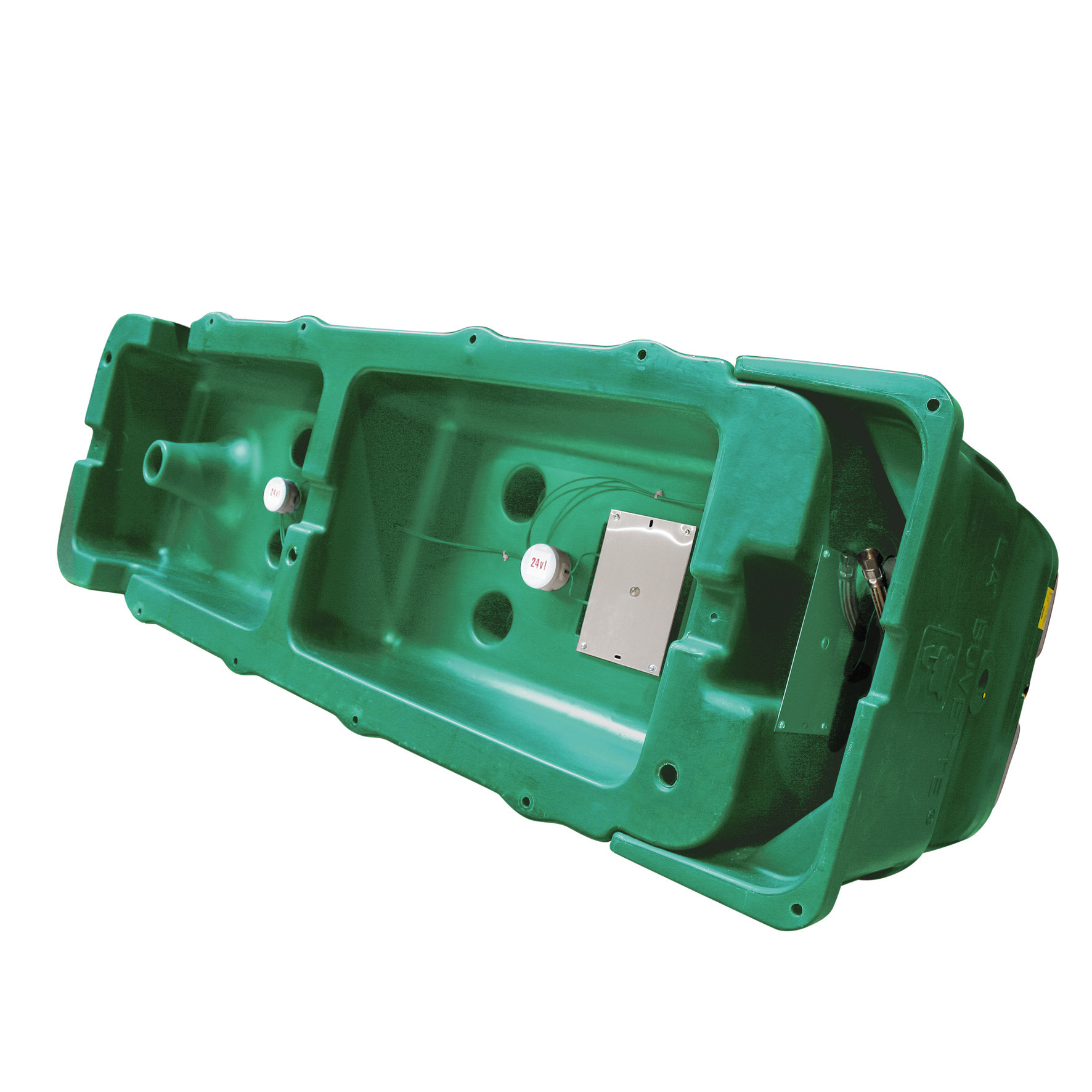

3 heating plates 80 W protect the trough, the valves and the water supply.
Draining Ø 100 mm.
No tools are required to acces to the valve.
Combined with the optional A384, the valves, installed safely beneath the protective cover, supply 96 l/min up from 3 bars (25¼ USG, 43½ psi).
Draining Ø 100 mm.
No tools are required to acces to the valve.
Combined with the optional A384, the valves, installed safely beneath the protective cover, supply 96 l/min up from 3 bars (25¼ USG, 43½ psi).
Add a third float-valve (A384) to distribute lukewarm water from the milk pre-cooler.

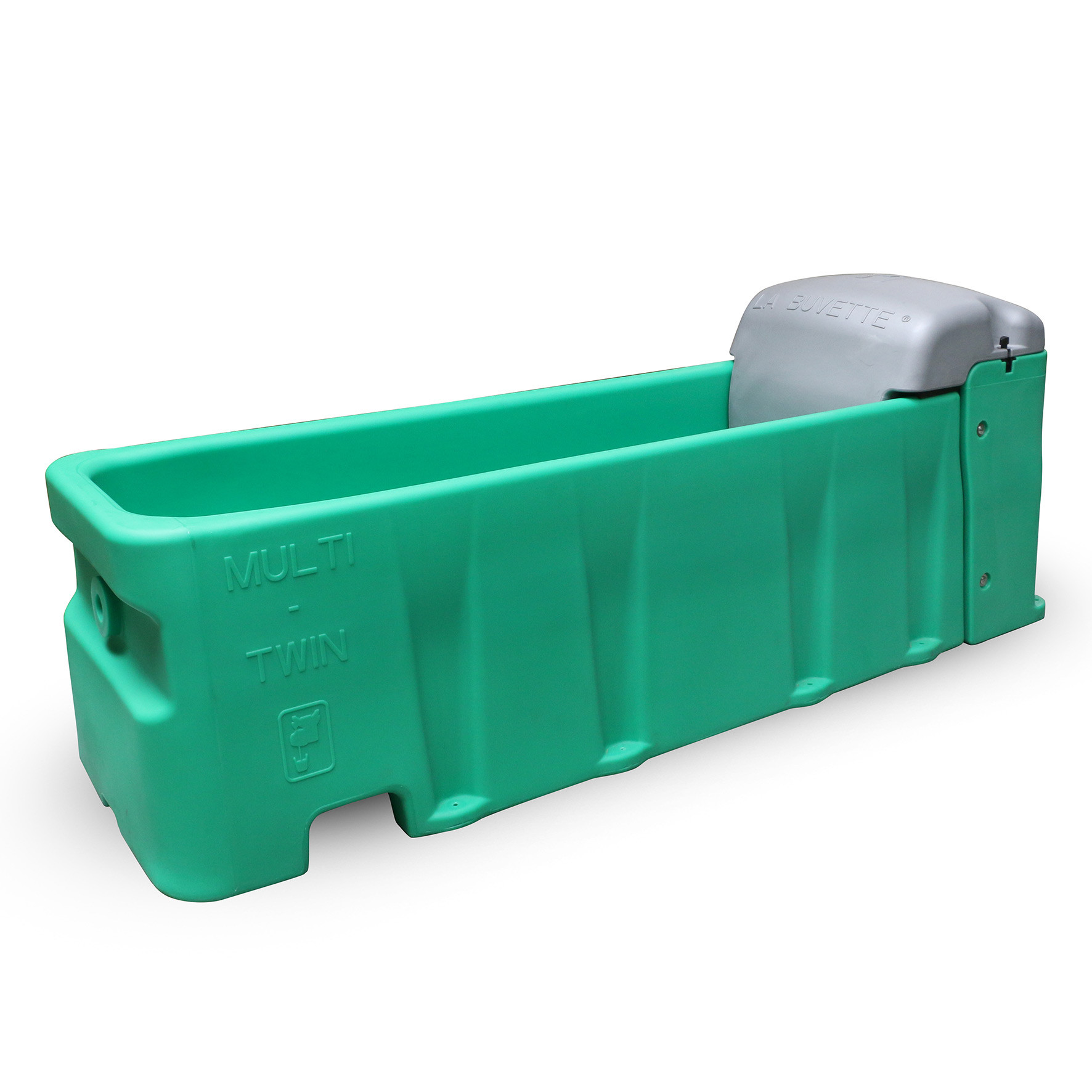

The Multi-Twin™ trough has to be installed on a concrete base with a minimum height of 20 cm (8”).
Tranformer 230/24V required, sold separately.
The Multi-Twin™ trough has to be installed on a concrete base with a minimum height of 20 cm (8”).
Tranformer 230/24V required, sold separately.
| Débit l./Min | 64 |
|---|---|
| Puissance électrique (W) | 240 |
| Tension éléctrique (V) | 24 |
| Longueur (mm) | 2161 |
| Largeur (mm) | 719 |
| Hauteur (mm) | 812 |
| Code barre | 3599150041409 |
| Mode d'approvisionnement en eau | Water network |
| Raccordement en eau | 3/4” |
| Robinetterie | Constant Level |
| Matière | Polyethylene |
- Vue éclatée des pièces 0390-MULTI-TWIN-S-EL.pdf (Size: 1.1 Mb)
- Notice de montage Montage_MULTI_TWIN_EL.pdf (Size: 2.2 Mb)
